GENERAL LUBRICATION FITTINGS

Pipe Connectors & Extensions

JIC, BSP and BSPT pipe connectors and thread extensions for centralised lubrication piping. Stainless steel and mild-steel options. Used to extend port lengths, transition between thread standards, and complete custom feeder runs.

Technical specifications

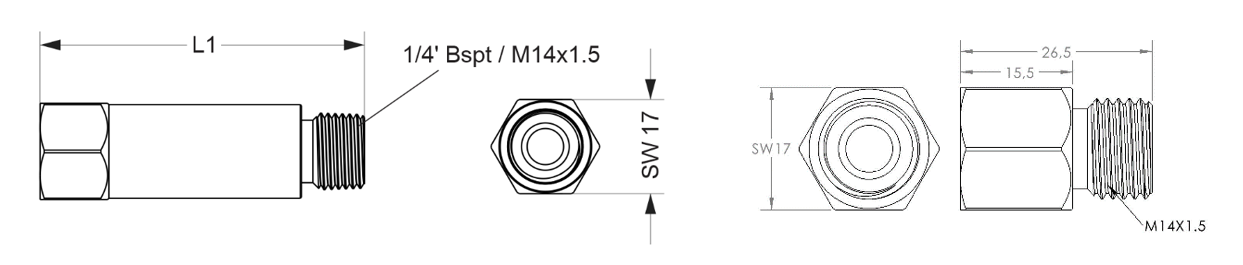

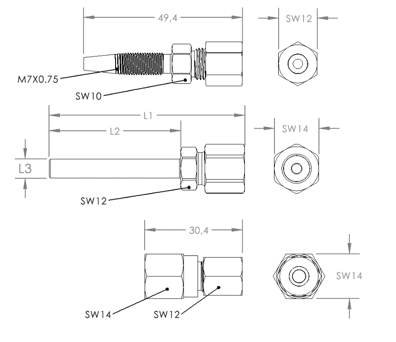

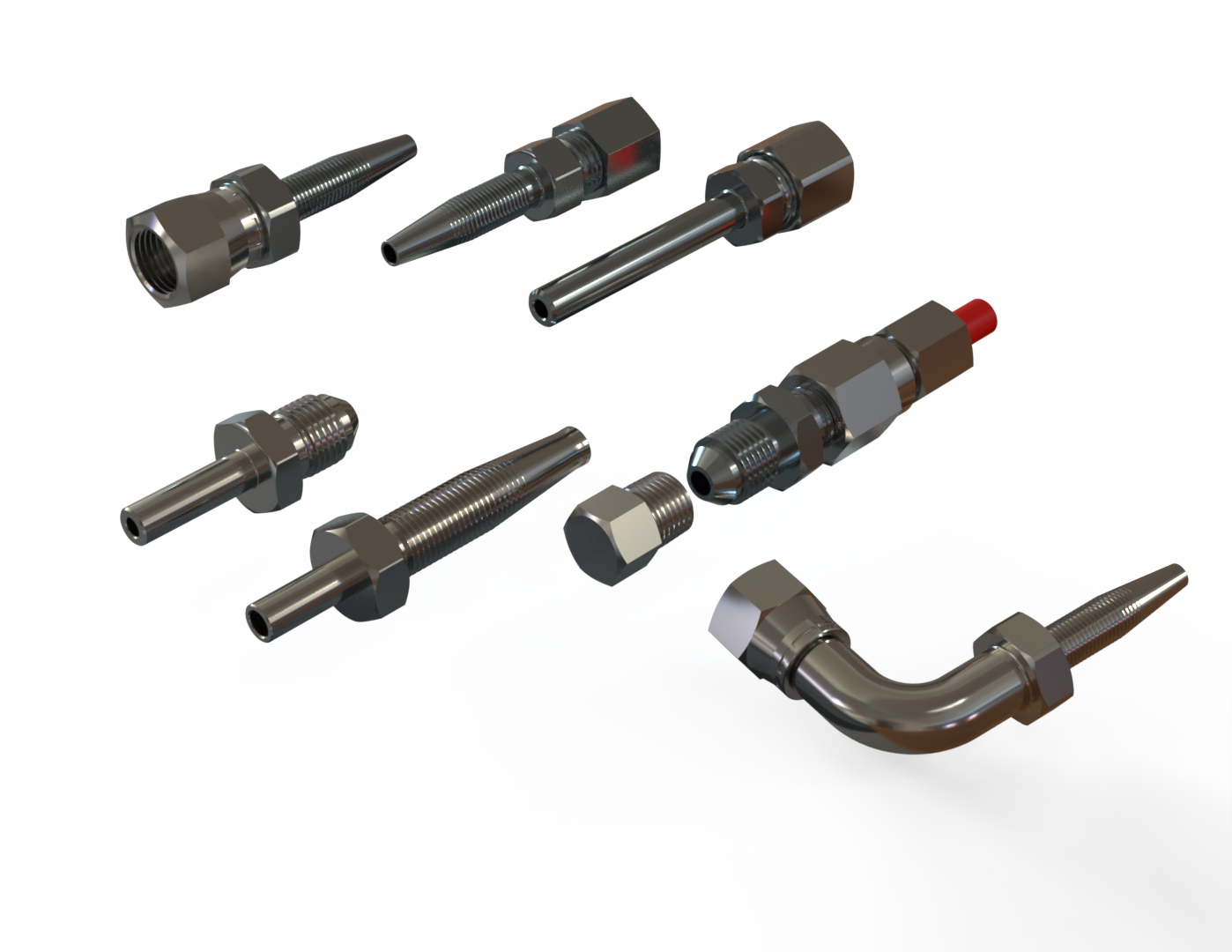

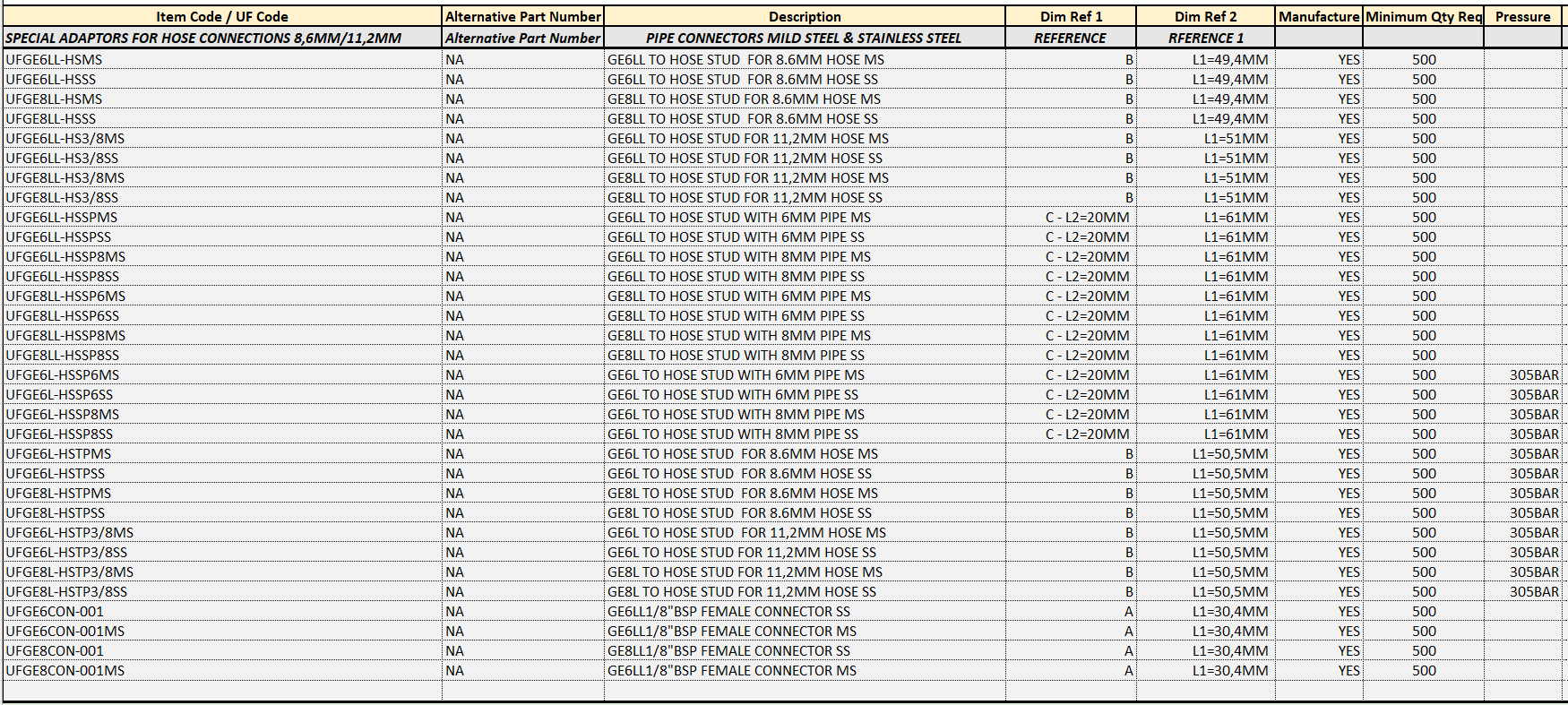

Variations	7/16 JIC TO 6MM Standpipe Short Nipple SS, 7/16 JIC TO 1/4' BSPT Nipple SS, Extension 1/8BSP(F)-1/8'' BSPT(M) Mild Steel, Extension 1/8BSP(F)-1/8'' BSPT(M) Stainless Steel, Pump Element Extension MS and SS, Special UF Designed Pipe Connectors and Adaptors

Pipe Connectors & Extensions

Variations

Clear

Qty

SKU: N/A Category: General Lubrication Fittings Tags: extensions, lubrication extensions, pipe connectors, pump element extensions

Product details

A working catalogue of pipe connectors and extension nipples used routinely in lubrication system installations — for converting between hydraulic JIC, BSP and BSPT standards, and for adding length to feeder runs that need to clear obstructions.

Common variants

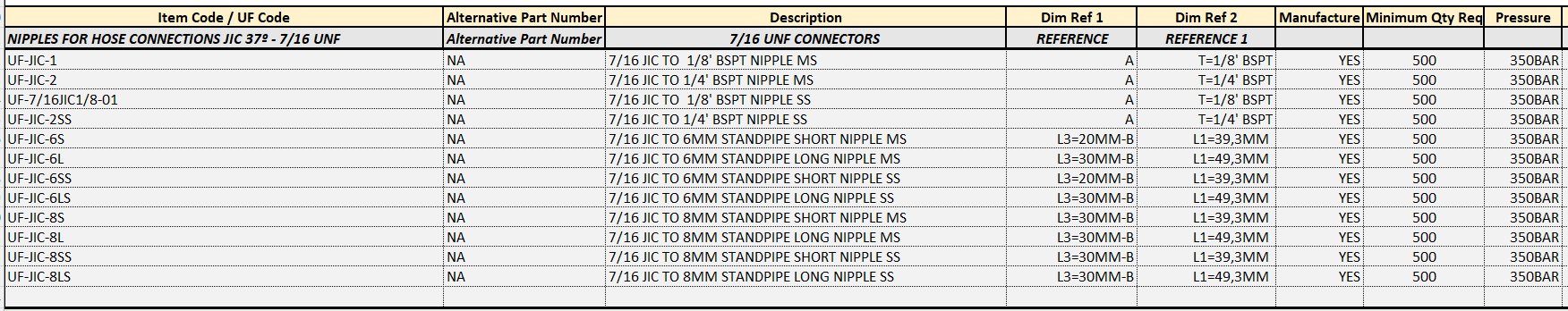

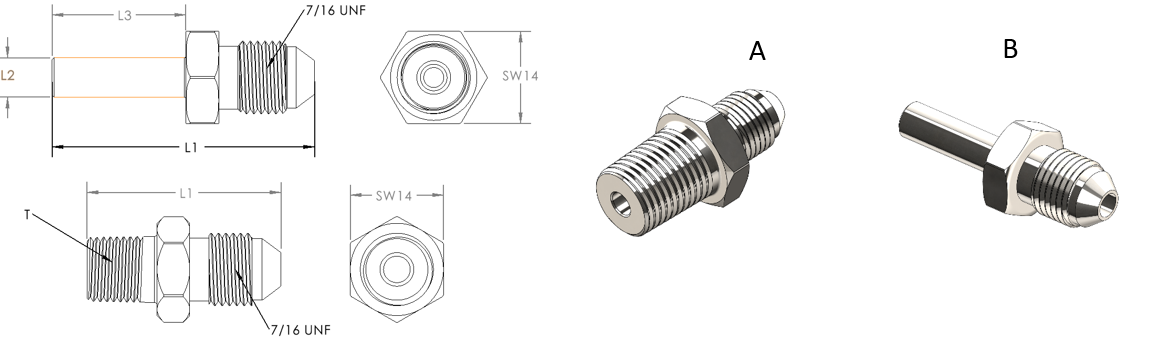

7/16 JIC to 6 mm Standpipe Short Nipple (SS) — joins JIC-37° hydraulic ports to metric standpipe lubrication tubing
7/16 JIC to 1/4″ BSPT Nipple (SS) — JIC-to-pipe-thread conversion

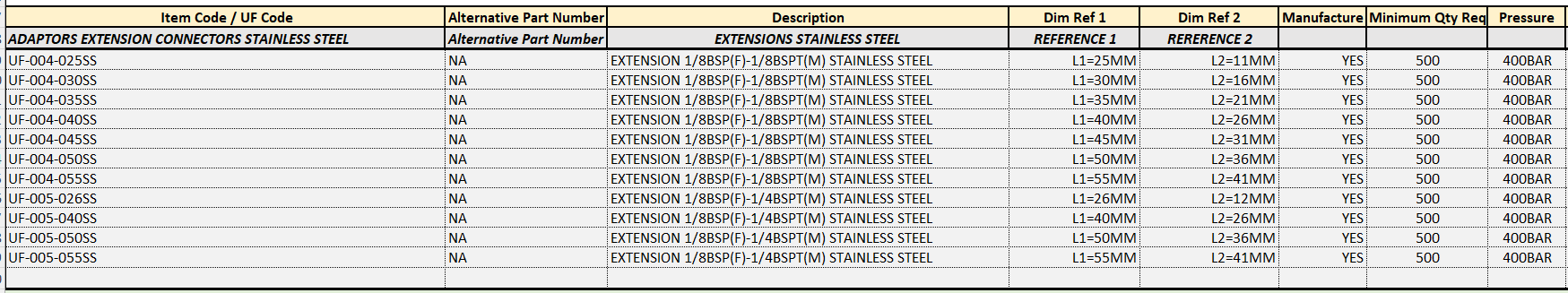

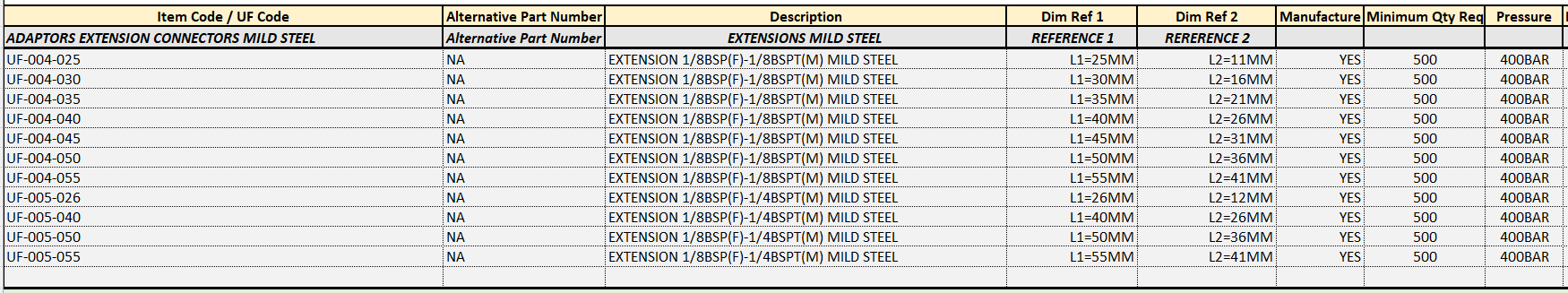

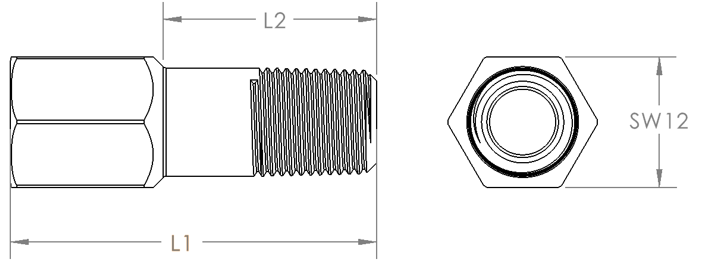

Extension 1/8 BSP(F) — 1/8″ BSPT(M) mild steel — adds reach to a port that’s set too deep

Material selection

Stainless steel for marine, food-grade and outdoor applications. Mild steel (zinc-plated) for cost-sensitive indoor industrial installations. All pressure-rated for centralised lubrication working pressures.

Pipe Connectors & Extensions

Pipe Connectors & Extensions

Common variants

Material selection
