Controller brochures & datasheets.

At-a-glance brochures for each controller in the Ultra-Flow proprietary range — including the Roamer IoT module datasheet. For full operation and installation guidance, refer to the Controller Manuals library.

A2
BROCHURE
BROCHURE

Product Brochure A2 2026 LATEST

A2 Universal Lubrication Controller · Datasheet

The A2 is the flagship Ultra-Flow lubrication controller — a universal cycle controller compatible with single-line, dual-line and progressive systems. Supports up to 8 inputs and 4 outputs, with cycle timing, fault detection and external alarm signalling. Engineered and assembled in Cape Town.

  • Universal compatibility — SLS, DLS, PLS
  • 8 digital inputs, 4 relay outputs
  • Cycle timer with fault detection
  • IP65 enclosure, 12-24V DC
2026 Edition 900 KB Mar 2026
Download PDF View online →
AUTOLUBE
BROCHURE
BROCHURE

AUTOLUBE BROCHURE UF

Autolube Progressive Controller · Datasheet

The Autolube is a programmable progressive-system controller for medium-to-large installations. Supports multiple lubrication zones with independent timing, fault zoning, and integration with site PLCs via dry-contact outputs.

  • Multi-zone progressive system controller
  • Independent zone timing and fault zoning
  • PLC-compatible dry-contact outputs
  • Suitable for medium-to-large installations
Current revision 234 KB Sep 2025
Download PDF View online →
G1
BROCHURE
BROCHURE

GENIE G1 BROCHURE UF

Genie G1 Controller · Datasheet

The Genie G1 is a compact, cost-effective cycle timer for single-line lubrication systems. Field-adjustable interval and dispense times, with cycle confirmation feedback. Ideal for mobile equipment, small machine-tools and fleet retrofits.

  • Single-line system controller
  • Adjustable interval and dispense timing
  • Cycle confirmation feedback
  • 12-24V DC, IP65
Current revision 265 KB Sep 2025
Download PDF View online →
G2
BROCHURE
BROCHURE

GENIE G2 PULSE BROCHURE UF

Genie G2 Pulse Controller · Datasheet

The G2 Pulse builds on the G1 with proximity-switch monitoring for progressive divider systems. Counts divider cycles in real time, raises a fault if cycles cease — providing positive confirmation that lubricant is reaching every point on the system.

  • Progressive system controller
  • Proximity-switch cycle counting
  • Real-time fault detection
  • Compatible with all SSV/SSVD dividers
Current revision 194 KB Sep 2025
Download PDF View online →
ADS
BROCHURE
BROCHURE

ADS 3 Data Shuttle

ADS-3 Data Shuttle · Datasheet

The ADS-3 is a portable data logger for Ultra-Flow lubrication systems — connects to any controller to extract cycle history, fault logs and configuration. Used by service engineers for site audits, commissioning records and warranty validation.

  • Portable handheld data logger
  • Cycle history and fault log extraction
  • Site audit and commissioning tool
  • USB transfer to PC for analysis
Current revision 268 KB Sep 2025
Download PDF View online →
ROAMER
BROCHURE
BROCHURE

Roamer 1

Roamer IoT Module · Datasheet

The Roamer connects any Ultra-Flow controller to a secure cellular network — giving live remote monitoring of lubrication system status, oil level, pressure and cycle history. Built-in modem; no site Wi-Fi or LAN required. Alerts via SMS and email on system fault.

  • Cellular IoT module — no site network needed
  • Live remote monitoring via web dashboard
  • SMS and email fault alerting
  • Compatible with A2, G1, G2 Pulse, Autolube
August 2024 318 KB Sep 2025
Download PDF View online →
Background
Ultra-Flow SA | Controllers

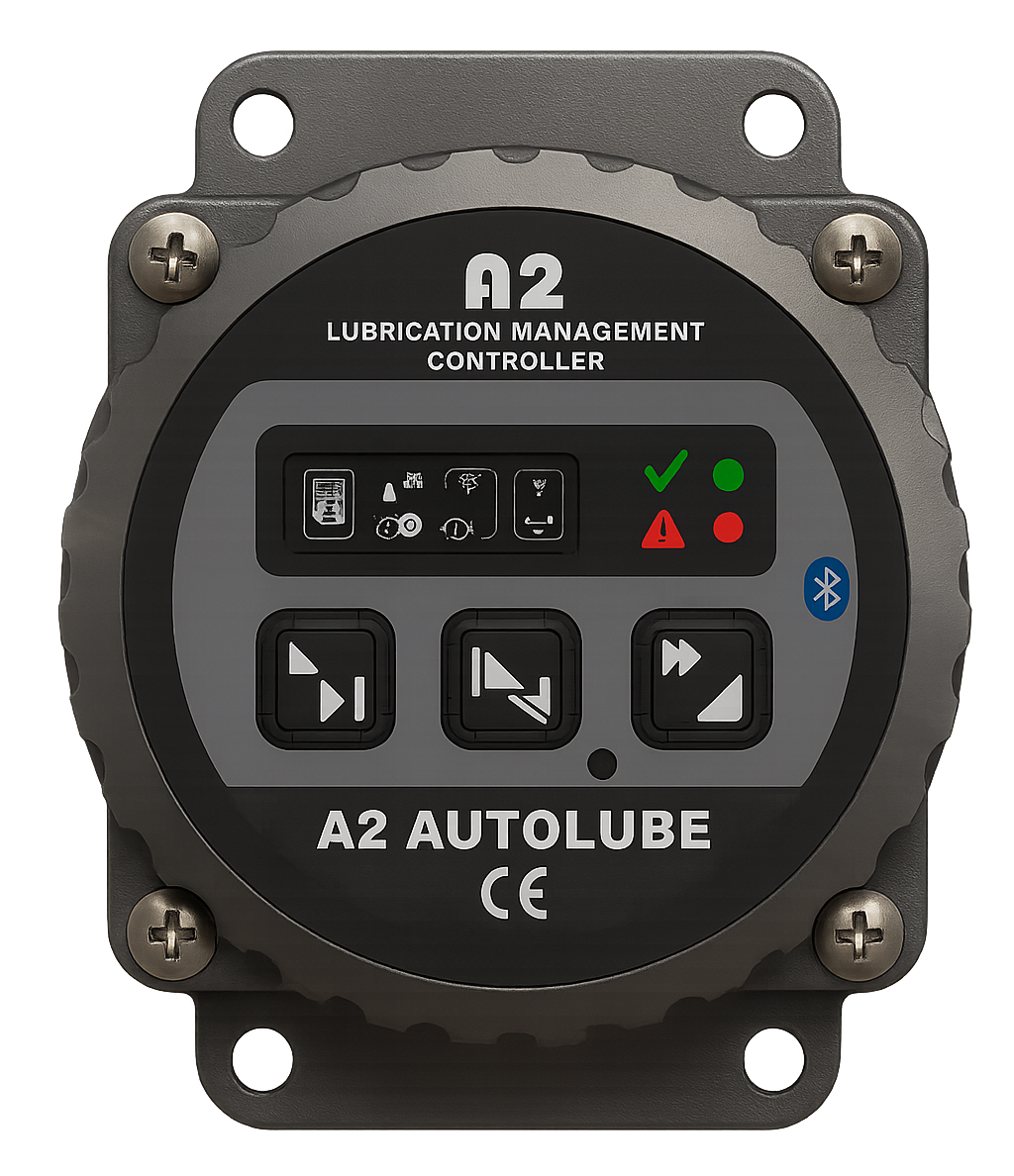

A2 Lubrication Management Controller
Rugged · Bluetooth

A2 Lubrication Management Controller

Heavy-duty controller, on-device keys and Bluetooth for setup/diagnostics. Manages cycles, monitors level/pressure and triggers visual alarms.

Autolube Digital Controller
Simple · Reliable

Autolube Digital Controller

Clear 7-segment display with quick keys for seconds / minutes / hours timing. LED status for pump, proxies and reservoir—ideal for straightforward scheduled lubrication.

G1 Lubrication Controller
Entry · Dial Set

G1 Lubrication Controller

Compact controller with dial-set intervals and clear status LEDs for run, pause, level and proxy. A cost-effective choice for single-pump systems.

G2 Pulse Lubrication Controller
Advanced · Pressure

G2 Pulse Controller

Advanced unit with timing control plus pressure feedback for verification. Fault annunciation and RUN/PAUSE control keep critical assets protected.

Data-Shuttle
Accessory · Programming

UF Data-Shuttle

Handheld programmer/data transfer tool for compatible controllers—speeding commissioning, cloning settings and secure parameter updates.

Roamer Remote Module
Remote · Mobile Assets

Roamer Remote Module

Compact remote module designed for mobile or standalone lubrication applications—ideal where local power or access is limited.

Autolube Series also available in Dual and Progressive Line systems! GET NOW!
